Earlier Traditional methods used measuring equipment but nowadays Point Cloud to BIM is highly recognized for its extreme accuracy. For as-built reasons as well as for renovation and reconstruction projects, we generate high-quality Models.
To begin the projects, a building surveyor uses a 3D laser scanner to scan the whole building. The following are some of the advantages:
- Enhanced the detailed information of building using multiple angles.
- Help stakeholders to save a lot of money.
- Overall processing time of construction project will reduce.
- Helps in enhancing the efficiency of the workers as everything will be done by software.
A 3D laser scanner provides dimension information, resulting in a Point Cloud 3D Model. It means that this 3D laser scanner scans and analyses the whole structure and creates a .pts file. You can check out the image (A) below which is a point cloud picture. The file is then transformed to a .rcp (ReCAP) format that is compatible with Revit Software. After that, modeling is made in order to convert the model into a Point Cloud File.
Renovation projects benefit the most from point cloud techniques. With the help of 3D laser scanners or other different technology, a point cloud acquired a vast collection of points to construct 3D models of the existing buildings. The design process is aided by point cloud files, which provide a real-world framework in which you may simulate the object or add new models.
We give global services at Chudasama Outsourcing Pvt. Ltd. We assist surveyors, architects, retailers, and contractors in converting point cloud and laser survey data into data-rich 3D BIM models for use in building processes downstream. For BIM Modeling, we utilize Revit Architecture and Revit MEP.
We use the following software for this process
- AutoCAD
- Revit
- Revit MEP
Point Cloud to BIM Services Benefits
- It is primarily used in MEP since it detects fewer clashes than other software.
- It accelerates the production of intelligent BIM models in Revit by providing clients with precise Point Cloud Data.
- It helps in the measurement of points inside the scan in order to quickly determine accurate dimensions.

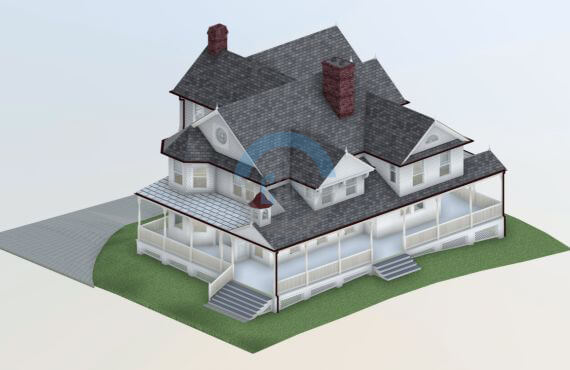

Our company's professionals have extensive experience translating Point Cloud Data into BIM platforms with the help of Revit and other BIM tools. We develop an accurate As-Built information Model of the pipes, walls, slabs, roof plans, facade, and landscapes of the structure from both inside and outside. We have worked on LOD 300 to LOD 500 models for Architectural Elements, Mechanical, Structural, Electrical, and Fire Fighting Elements, Structural Elements, and Integrated Models.
